UCDCH3 Ultrasonic Cleaner — Digital control with heating, 3 L
Overview

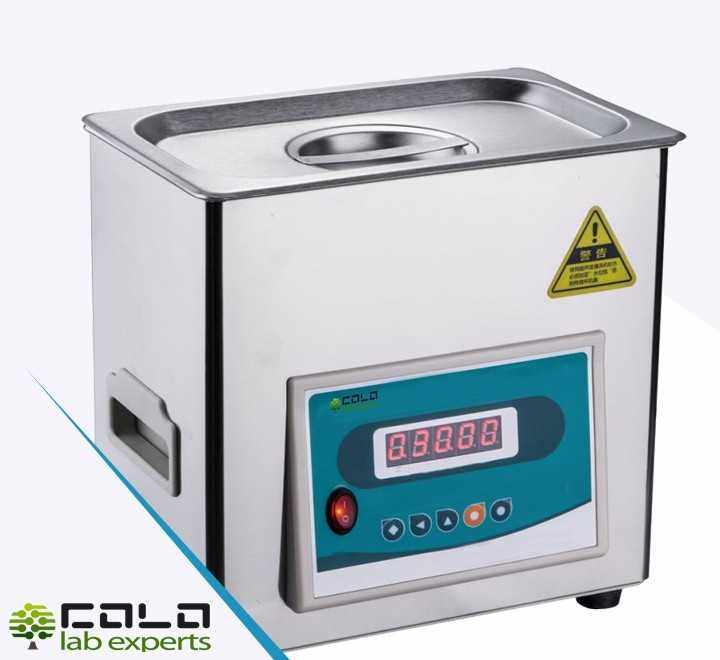

UCDCH3 is a 3-liter ultrasonic cleaner designed for fast and uniform cleaning of labware and instruments. A backlit LED display provides clear time and temperature readout, while adjustable ultrasonic power (40–100%) and heating up to 80 °C help match different soil loads. The stainless-steel tank, basket and housing improve durability, and the integrated drain makes daily maintenance easy.
Applications
- Laboratory glassware & metal parts
- Dental, medical and veterinary instruments (pre-cleaning)
- Optics, jewelry, watch parts
- PCB and precision components
Key Features
- Large illuminated LED display for time & temperature
- Digital timer (1–99 min) with working countdown
- Adjustable ultrasonic power: 40–100%
- Heating up to 80 °C (Kanthal heaters)
- Wi-Fi temperature monitoring & control
- Parameter selection menu, power & memory functions
- Stainless-steel tank, basket, lid and housing
- Sound-reduction lid; integrated drain
- Operating procedures via SCM software
Models & Dimensions
| Model | Tank (L×W×H) mm | External (L×W×H) mm | Volume | SKU |
|---|---|---|---|---|
| UCDCH3 | 240 × 140 × 100 | 270 × 170 × 240 | 3 L | PRO2471 |
Technical Specifications
| Ultrasonic frequency | up to 145 kHz |
|---|---|
| Ultrasonic power | 180 W (adjustable 40–100%) |
| Heating power | 400 W (Kanthal heaters) |
| Temperature setting | up to 80 °C |
| Timer | 1–99 minutes (countdown display) |
| Tank volume | 3 L |
| Tank dimensions (mm) | 240 × 140 × 100 |
| External dimensions (mm) | 270 × 170 × 240 |
| Material | Stainless steel (tank, basket, lid, housing) |
| Lid / Basket | Sound-reduction lid; special stainless-steel basket (included) |
| Drain | Yes |
| Power supply | 230 V / 50 Hz |
| Controls | Digital display with parameter menu; Wi-Fi temperature monitoring |
| Software | SCM operating procedures |
