ALEMADR-MS Thermo Shaker Incubator – RT+5–100 °C, 0–1500 rpm

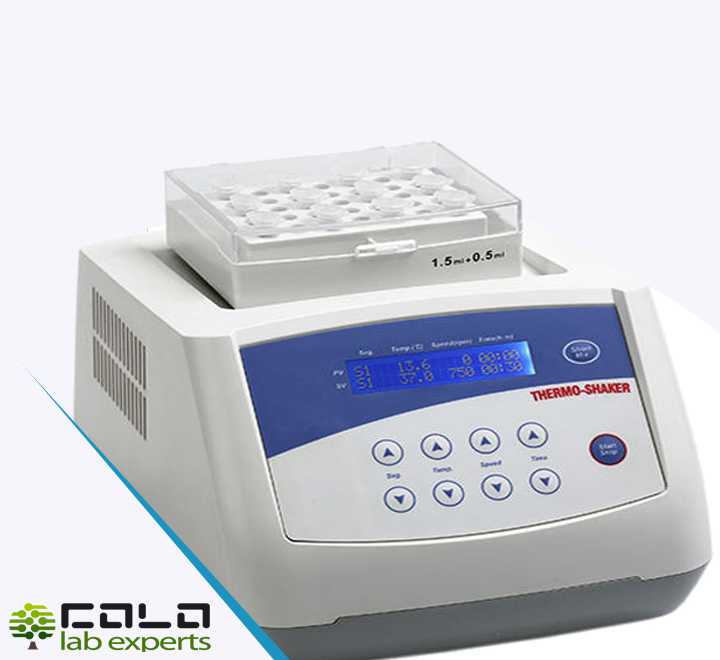

Overview — ALEMADR-MS Thermo Shaker Incubator
ALEMADR-MS is a thermo shaker (oscillating metal bath) that combines precise heating, orbital mixing (0–1500 rpm), and timing in one compact unit. It uses a brushless DC motor for quiet, maintenance-free operation and PID temperature control for accuracy. The 2-line LCD shows set/current temperature, speed, and time. A power-off recovery function resumes the program after power returns, and menu lock prevents accidental changes. Temperature blocks are interchangeable and easy to swap for different tube formats. :contentReference[oaicite:0]{index=0}
Simplicity & speed for everyday protocols.
- Heats from 25→100 °C in ≤5 min (module-dependent)
- Power-off recovery + parameter memory
- Brushless DC drive, soft start, ±1 rpm speed accuracy
Key features
- Temperature range: RT + 5 °C to 100 °C (heating) with PID control. :contentReference[oaicite:1]{index=1}
- Orbital mixing 0–1500 rpm, amplitude 2 mm; soft start to prevent sample splash; auto-lock if speed is out of control. :contentReference[oaicite:2]{index=2}
- Timer 1 min – 99 h 59 min (continuous or timed); audible alarm at end. :contentReference[oaicite:3]{index=3}
- Two-line LCD shows set/current temperature, speed, and time; display accuracy ±0.1 °C. :contentReference[oaicite:4]{index=4}
- Power-off recovery; parameter memory; menu button lock; temperature deviation correction. :contentReference[oaicite:5]{index=5}
- Multidimensional drive; ABS housing; Pt100 Class A sensor. :contentReference[oaicite:6]{index=6}
- Safety: over-temperature and overload protection; optional firmware updates via USB/Bluetooth. :contentReference[oaicite:7]{index=7}
Technical specifications — ALEMADR-MS
| Temperature control range | RT + 5 °C to 100 °C (heating) |
|---|---|
| Cooling system | No (heating model) |
| Mixing speed | 0–1500 rpm; ±1 rpm accuracy; 2 mm orbit |
| Temperature resolution | 0.1 °C |
| Temperature stability | ±0.1 °C |
| Control accuracy | 0.2 °C |
| Accuracy at 37 °C | 0.1 °C |
| Timer | 0 to 99 h 59 min |
| Drive / housing | Multidimensional drive; ABS shell |
| Sensor | Pt100, Class A |
| Calibration coefficient (t°) | 0.936 – 1.063 (±0.063) |
| Running functions | Setting/program run, timing run, auto stop, quick stop-start, one-button illumination, two-way auto switching |
| Power supply | AC110–220 V ±10% / 50–60 Hz / 60 W; output DC12 V / 4.9 A |
| Dimensions (W×D×H) | 220 × 240 × 90 mm |
| Net / gross weight | 3.7 / 6 kg |
* Upper limits of temperature and speed may depend on the installed block/module.
Sources: ALEMADR series catalog/spec sheet. :contentReference[oaicite:8]{index=8}
Included
- ALEMADR-MS thermo shaker incubator
- Power adapter
- User manual
Thermo block options
Interchangeable aluminum blocks for plates and tubes (max temp & speed vary by block):
- A-Block — 96×0.2 mL plate (PCR/microplate) — 100 °C — 1500 rpm
- B-Block — 54×0.5 mL tubes — 100 °C — 1500 rpm
- C-Block — 35×1.5 mL tubes — 100 °C — 1500 rpm
- D-Block — 35×2.0 mL tubes — 100 °C — 1500 rpm
- E-Block — 15×0.5 mL + 20×1.5 mL — 100 °C — 1500 rpm
- F-Block — 24×Ø≤12 mm tubes — 100 °C — 1200 rpm
- G-Block — 12×15 mL (Falcon) — 100 °C — 800 rpm
- H-Block — 6×50 mL (Falcon) — 100 °C — 750 rpm
- J/I-type square slot module 103×67×30 mm — 100 °C — 1500 rpm
- PCR-A holder 96×0.2 mL; PCR-B 96-well plate — 100 °C — 1500 rpm
- K/L/M/N/O/P variants — 5 mL–2 mL mixed formats (see catalog)
Full block list and codes in the catalog. :contentReference[oaicite:9]{index=9}
